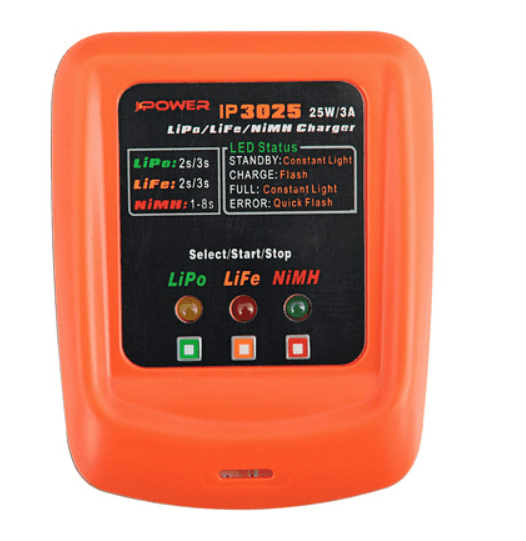

Charger IP3025

DOSSIER / 01

What you are buying.

Microprocessor charger with balancer for LiPo / LiFe / NiMH batteries. Easy-to-use universal microprocessor charger equipped with a balancer, for battery packs consisting of 2-3 Li-Po cells or 1-8 NiMH cells. Thanks to the quality construction, the charging process is stable and the microprocessor supervises the selection of the appropriate voltage and current. Thanks to that, the battery will never be overcharged and will retain its factory parameters for a long time. The charger has three diodes indicating the operating mode. Pressing once, choose the type of battery. To start charging, press and hold the key for 3 seconds. During charging, the LED blinks, when the charging is complete, the LED is permanently on. Fast flashing of the diode indicates a fault, disconnect the charger from the power supply and check the correctness of connections and the condition of the battery itself. The LiPo / LiFe battery should be connected only via the balancer connector and the NiMH battery through the adapter included in the set! The balancer has two inputs one for 7.4 V packages, the other one for 11.1V batteries. The set includes an adapter for connecting a NiMH battery. The charger does not have the option of loading two packages at the same time! Suitable for LiPo / LiFe battery packs (2 to 3 cells) and NiMH battery packs (1 to 8 cells) Has the function of automatic voltage maintenance in the battery Aligns voltage on individual targets by precise discharge or charging Powered by electricity from 100V - 240V It is characterized by a power of 25W and a current charging up to 3A. Status indicationCharging: RedFull charged: Green Failure: Red blink NOTE!The charger is designed for indoor use only. Do not leave the charger unattended during charging. NOTE!The Charger should be positioned horizontally and work in well ventilated condition, avoid water and keep away from flammable explosive goods. NOTE!Don't cover the charger when charging, ambient temperature shall not be more than 30oC NOTE!Do not leave batteries charging on flammable surfaces, wood surface or carpet. NOTE!Cut off the power supply before connect or disconnect the charger with batteries. NOTE!Don't try to disassemble the charger, High voltage inside, danger! Never leave the battery pack unattended. Especially do not connect it to the charger for the whole night! When charging the battery, it is recommended to put it in the "safety battery charging bag". Avoid short-circuits and mechanical damage to the battery. Mechanical damage or improper battery charging may lead to the fire of the battery!
